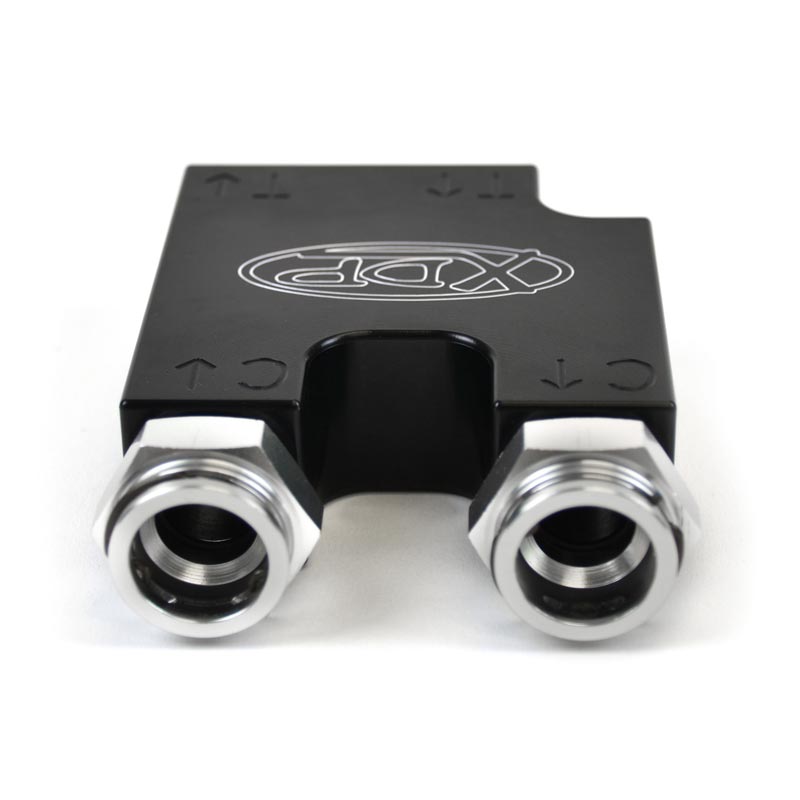

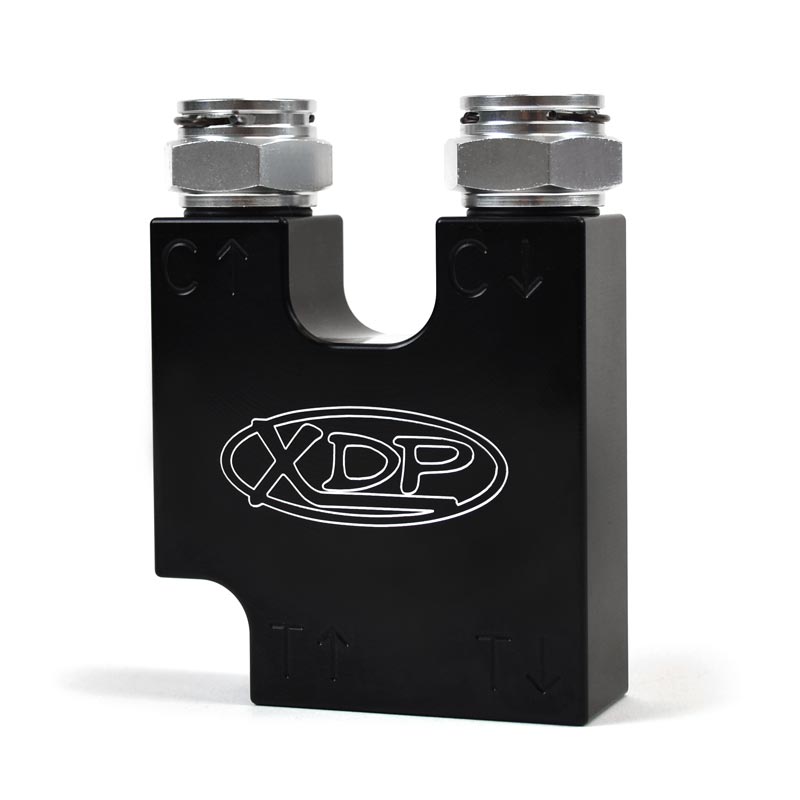

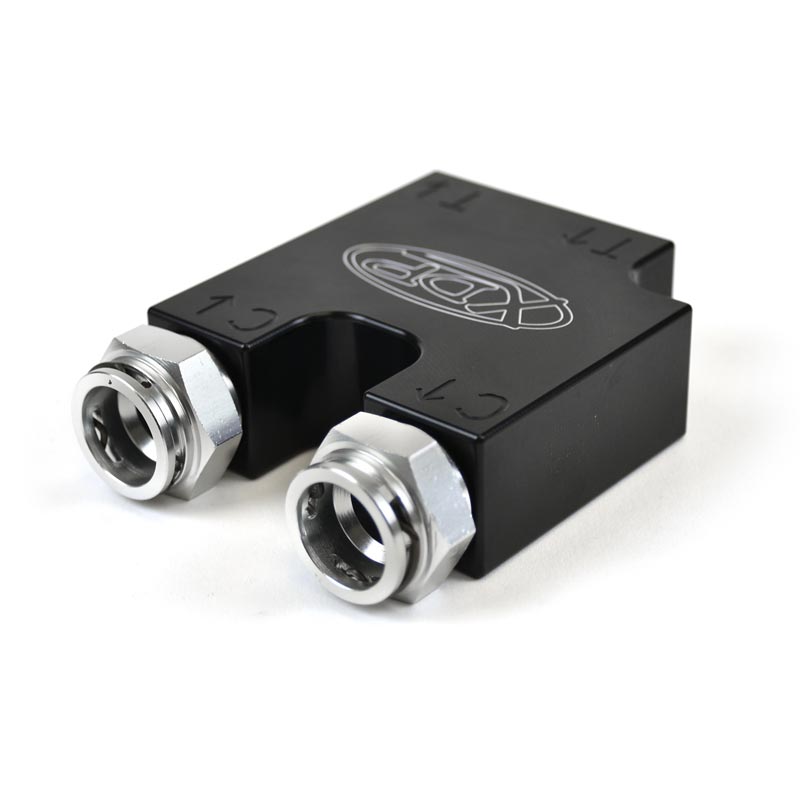

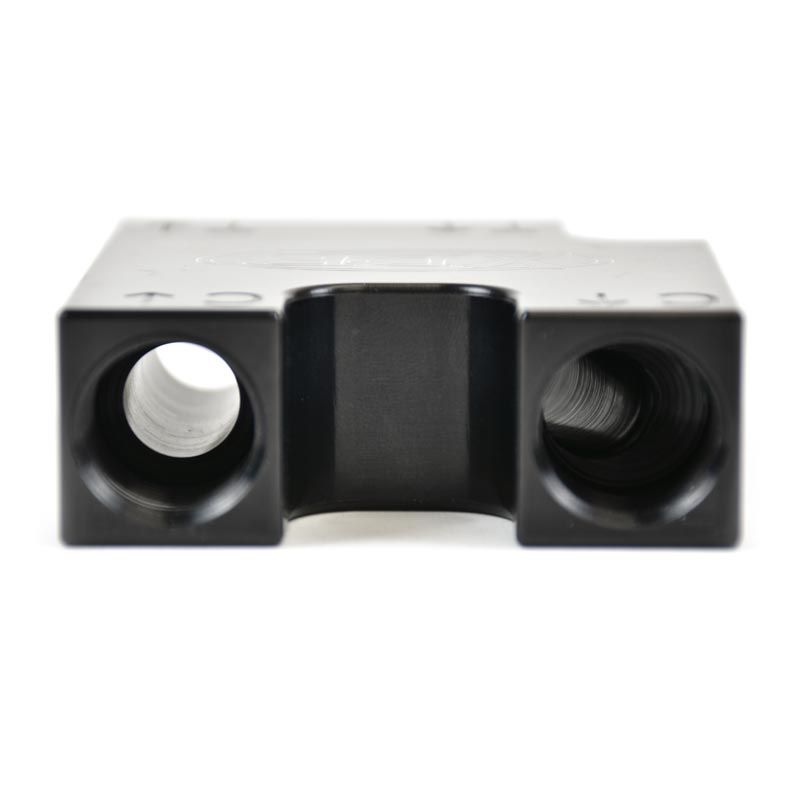

XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram

XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram
XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram
XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram
XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram
XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram

XDP RAM Transmission Cooler Thermal Bypass Valve (TBV) Upgrade 13-18 Ram

Regular price $99.95
/
3267 Entries 33x

Shipping calculated at checkout.
  • Secure payments
  • Most products are instock ready to ship, how ever some products may be backordered. Want to know if this product is INSTOCK before ordering? Email us at Sales@Fullsenddiesel.com
  • Buyer Protection Activated

While a giveaway is live (See official rules at the bottom of the page) simply purchase the products you want as you normally would & your entries will automatically be received. Once the giveaway is over, our sweepstakes company will pick a winner & we will CALL to notify the winner. This will also be streamed live to our instagram (@FullSendDiesel). We will NEVER DM you or message you on social media telling you that you won. Those are scams, please be very careful.

-

Questions? Email us at Sales@FullSendDiesel.com

Replace the problematic factory thermal bypass valve in your 2013-2018 Dodge Ram 6.7L Diesel before it causes catastrophic failure with the XDP Xtra Cool Transmission Cooler Thermal Bypass Valve Upgrade XD343. The OE thermal bypass valve is designed to route bypass the transmission cooler in cold temperatures in order to bring the transmission up to operating temperature faster.

Unfortunately, the bimetallic valve commonly fails in the closed position, causing hot transmission fluid to constantly circulate right back into the transmission, never, or barely, passing through the cooler at all. This results in excessive transmission temperatures, potentially damaging your transmission and leaving you stranded on the side of the road with not only an expensive tow bill, but a costly repair bill as well!

XDP's Thermal Bypass Valve Upgrade utilizes an unrestricted straight through design, eliminating the recirculation aspect of the factory TBV. No more having to worry about when the factory part will fail you. By removing the passageway that returns hot fluid back to the transmission, fluid restriction is reduced, lowering overall transmission temperatures.

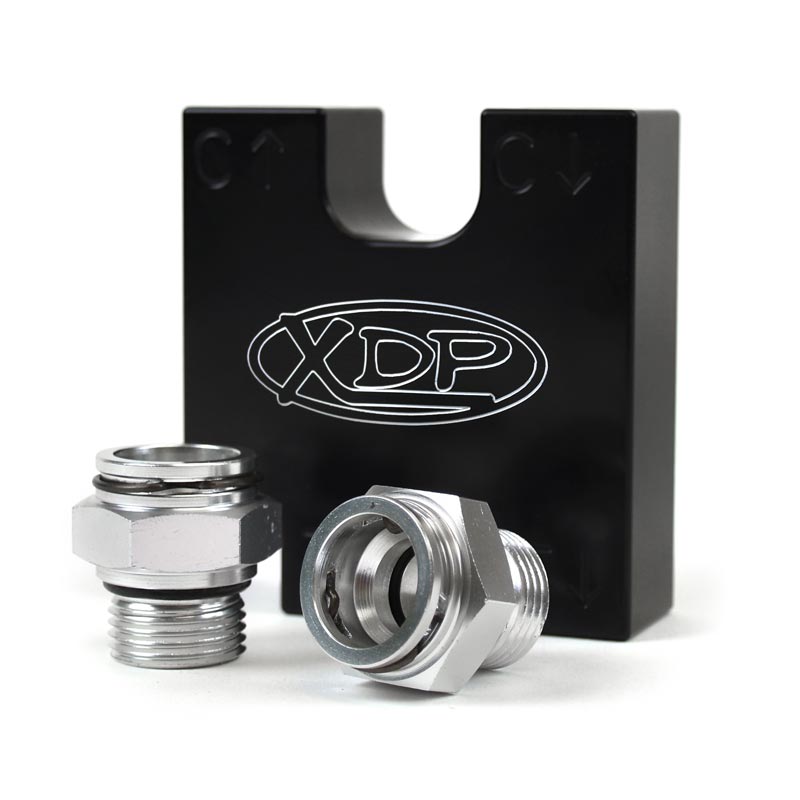

A transmission that runs cool will last longer than one that's always hot. Installation is just like installing the OE part, requiring no cutting or modifications to the factory lines. To prevent leaks before they start, Four (4) new O-rings are supplied as well as two (2) quick connect fittings, making for a complete bolt-on kit for the 68RFE and Aisin AS69RC transmissions.
Features:

  • Direct Replacement
  • Eliminates Hot Fluid Recirculation
  • Cooler Transmission Temperatures
  • No Modification Needed For Installation
  • Replaces Factory Thermal Bypass Valve
  • Fits 68RFE and Aisin AS69RC Transmissions
  • Replaces OE Part Number: 68186711AA and 68186711AB

Note: Will also fit Hemi trucks equipped with a 545RFE, 65RFE, or 66RFE transmission.
