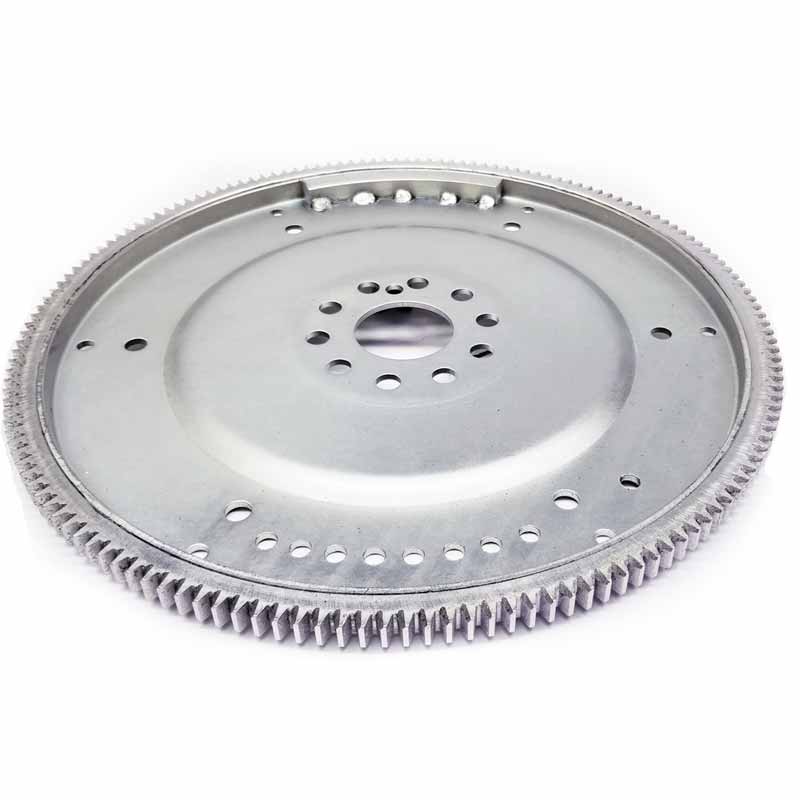

XDP Stock+ Series Flex Plate XD643
The XDP Stock+ Series Flex Plate XD643 provides your vehicle with a durable and dependable flex plate that can handle the demands of increased horsepower and torque. The stock flex plate in your truck is designed to withstand moderate to heavy-duty towing and mild HP upgrades.
Heavier loads, additional horsepower, and frequent towing can tax the flex plate which can result in heat spots from the torque converter. Through enough heat cycles, these heat spots can eventually crack and even cause the flexplate to break apart.
The Stock+ Series Flex Plate features a cold-rolled steel construction with a 4mm thick center plate. This helps provide a more solid foundation and absorbs more stress from the drivetrain compared to the factory flexplate. In addition, the ring gear is robotically cold-welded for accuracy and allows this flex plate to meet SFI specifications.
Features:
- SFI 29.1 Certified
- Constructed From Cold-Rolled Steel
- Robotically Cold-Welded Ring Gear
- 4mm Thick Centerplate Provides Rigidity
- Ideal For Stock and Slightly Modified Trucks
Application Notes:
- 155 Teeth
- External Balance
- Some trucks may be equipped with one or two shims or spacers on either side of the OEM flex plate.
- These shims or spacers will not be needed for installation of the XDP flex plate as it is thicker than the OEM flex plate.
- Removal of any shims or spacers is necessary to ensure good thread engagement of the flex plate bolts to the crankshaft.
